STH5-12KTH

Sonnex Energie GmbH
  1. Solarwechselrichter
  2. STH5-12KTH
Produktbild
Ad
Back contact 475-490W black solar modules
Sonnex Energie GmbH
Preis pro Stück
Mindestmenge 72+ Stk
Lieferzeit 7 days
SNX-D54HID-475M(R2) €76,0
Back contact 475-490W black solar modules
Hersteller Kontaktieren
Hinweis: Ihre Anfrage wird direkt an Sonnex Energie GmbH gesendet.
Rückseitenkontakt, Flexibel, BIPV, N-Typ
475-485 Wp
23,5 kg
30 Jahre
1 Jahre auf 99 %, 30 Jahre auf 88,85 %
23,3 % - 23,8 %
1800x1134x30 mm
2 mm
0,26 %/°C
108
Typ
Hybrid
Betriebstemperaturbereich
-30 ~ +60 ℃
Region
Deutschland Deutschland
Gewicht
24 kg
Produktgarantie
10 Jahre
Frequenz
50Hz, 60Hz
Wirkungsgrad
97,6 %
Schutzklasse
IP65
Anzahl der Anschlussphasen
3 Phasen
MPP(T) Spannungsbereich
135~900 V
Hersteller Kontaktieren
Hinweis: Ihre Anfrage wird direkt an Sonnex Energie GmbH gesendet.

  • Fast charging/discharging is used to meet the demand for higher consumption.

  • Remote firmware update and customizable settings.

  • Unique plug-in connectors for time-saving installation.

  • Free online monitoring enhances energy management for end users, installers, and retailers.

Produkteigenschaften

Modellnummer
STH5KTH STH8KTH STH10KTH STH12KTH STH6KTH

Produktgarantie (Min)
10 Jahre 10 Jahre 10 Jahre 10 Jahre 10 Jahre

Max. DC-Leistung
7,5 kW 10 kW 15 kW 18 kW 9 kW
Max. Eingangsspannung
1000 V 1000 V 1000 V 1000 V 1000 V
Max. Gleichspannung
600 V 600 V 600 V 600 V 600 V
Min. Eingangsspannung
135 V 135 V 135 V 135 V 135 V
Max. Einggangsstrom
16 A 16 A 16 A 16 A 16 A
MPP(T) Spannungsbereich
135~900 V 135~900 V 135~900 V 135~900 V 135~900 V
Anzahl MPP Tracker
2 2 2 2 2
DC Eingänge
1 1 1 2 2
Steckverbinder
MC4 MC4 MC4 MC4 MC4

Nominal AC-Leistung
5 kW 8 kW 10 kW 12 kW 6 kW
AC Nennspannungsbereich
200~240 V 200~240 V 200~240 V 200~240 V 200~240 V
Nominal Ausgangsspannung
220, 230 V 220, 230 V 220, 230 V 220, 230 V 220, 230 V
Max. Ausgangsstrom
9,8 A 15,8 A 19,7 A 23,6 A 11,8 A
Frequenz
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
Leistungsfaktor (cosφ)
0,8 0,8 0,8 0,8 0,8
Klirrfaktor
< 3 % < 3 % < 3 % < 3 % < 3 %
Anzahl der Anschlussphasen
3 3 3 3
Max. Wirkungsgrad
97,6 % 97,6 % 97,6 % 97,6 % 97,6 %
Europ. Wirkungsgrad
97 % 97 % 97 % 97 % 97 %

Abmessungen (H/B/T)
516x442x222 mm 516x442x222 mm 516x442x222 mm 516x442x222 mm 516x442x222 mm
Gewicht
24 kg 24 kg 24 kg 24 kg 24 kg
Geräusch
< 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A)
Betriebstemperaturbereich -30 ~ +60 ℃
Schutzklasse IP65
Kühlung Natürliche Konvektion
Max. Höhe 4000 m
Schnittstelle RS 485, USB, WLAN
Display LED

Schutzeinrichtungen Anti Insel-Schutz (ENS), Kurzschlussschutz, Überlastschutz, Überspannungsschutz, Überstromschutz, Übertemperatursicherung, Fehlerstrom-Schutzeinrichtung, Verpolungsschutz, DC Lasttrennschalter, Erdschlussüberwachung, Isolationsüberwachung, Netzüberwachung

PDF des Herstellers herunterladen
Technisches Datenblatt

About Us

Sonnex is focusing on solar module development and manufacturing with more than 2GW annual capacity, which is equipped with highly automatic production lines. With its headquarters in Germany, Sonnex stands for products that meet the highest quality standards of tomorrow. We only use the most recent cell technologies and go for a sublime finish.

Thanks to this approach, Sonnex offers extremely reliable modules with strong market performance.At Sonnex we have designed our product range in such a way that you will find a solution for every installation or project. We distinguish ourselves from other brands by our focus on quality, aesthetics, and sustainability.

Sonnex product types include PERC half-cell modules (405~605W), higher efficiency N-type TOPCon (420W~630W), IBC modules (390~430W) and smart solar modules with the highest module efficiency above 22%. Bifacial dual-glass modules and all-black solar modules are available for different project applications.

Sonnex Energie offers up to 30 years product warranty and 30 years power warranty.

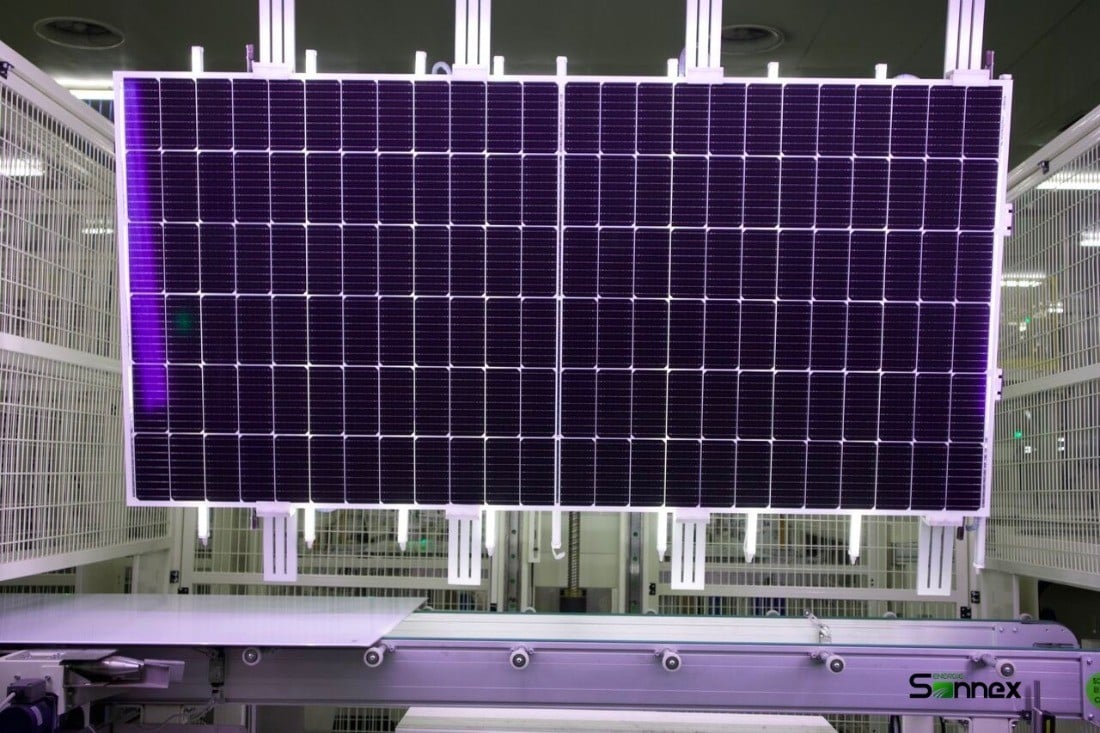

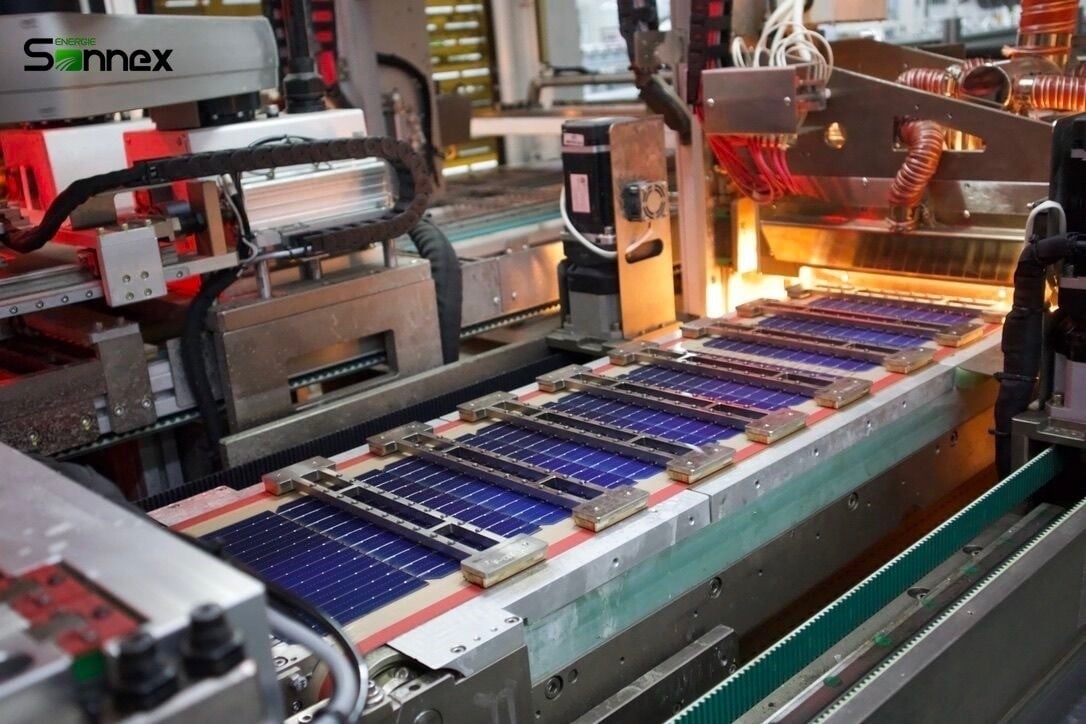

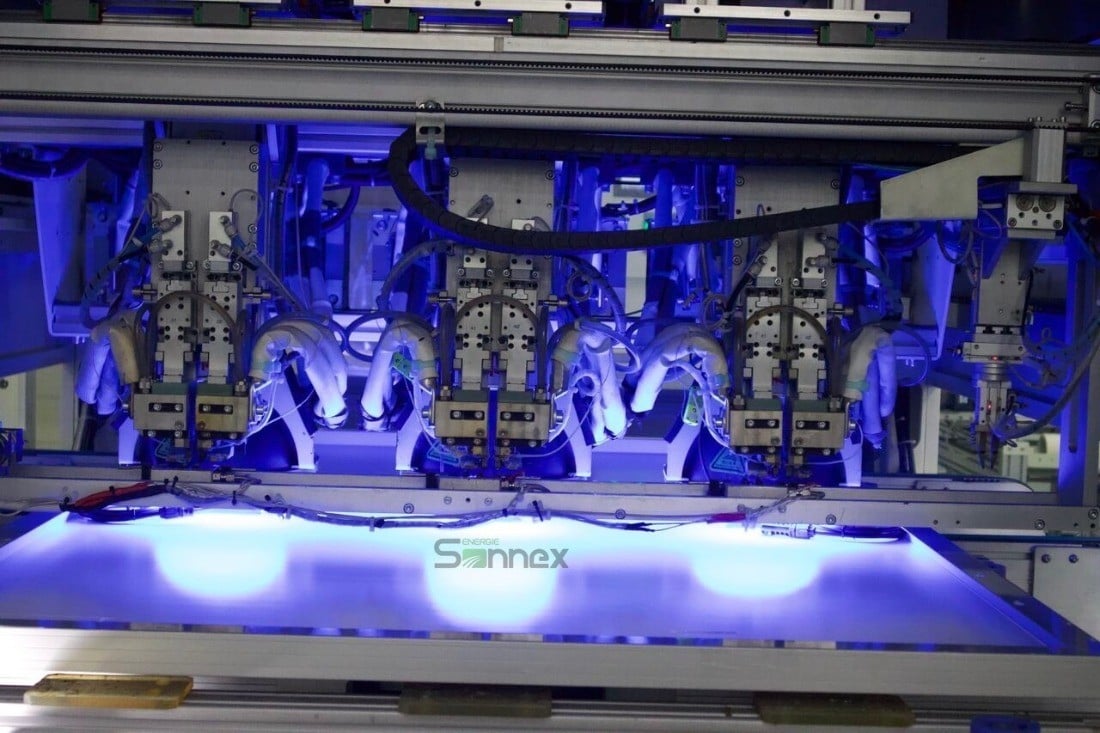

Production

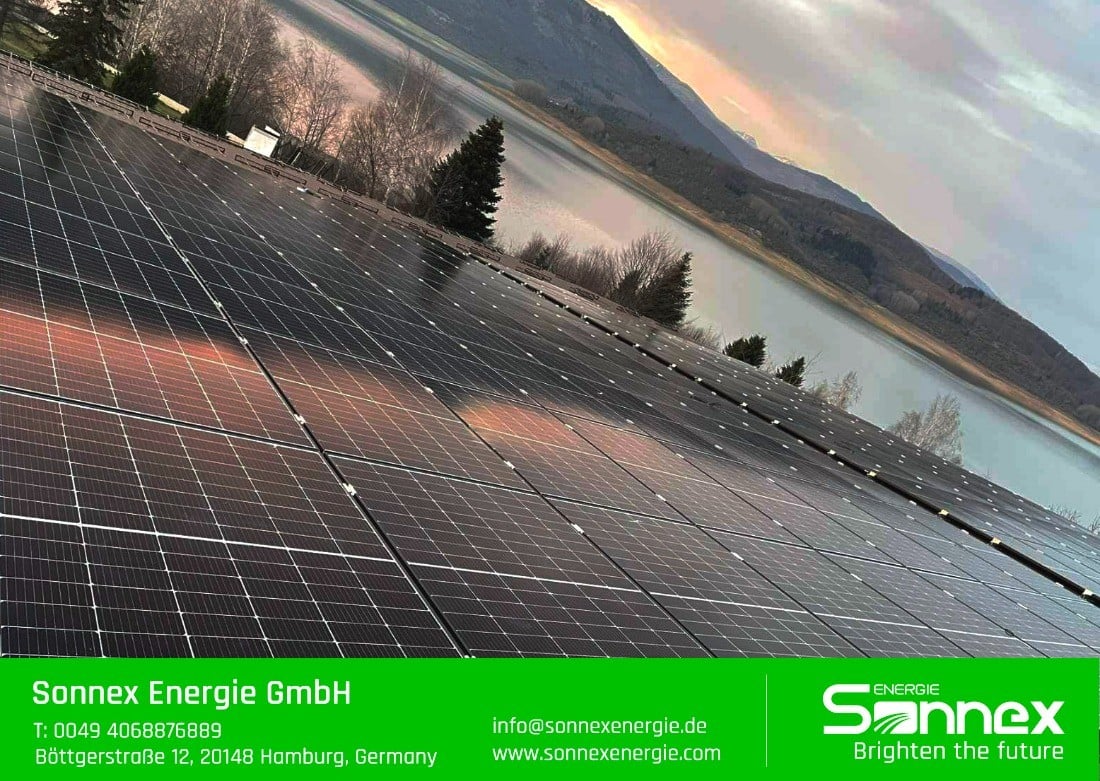

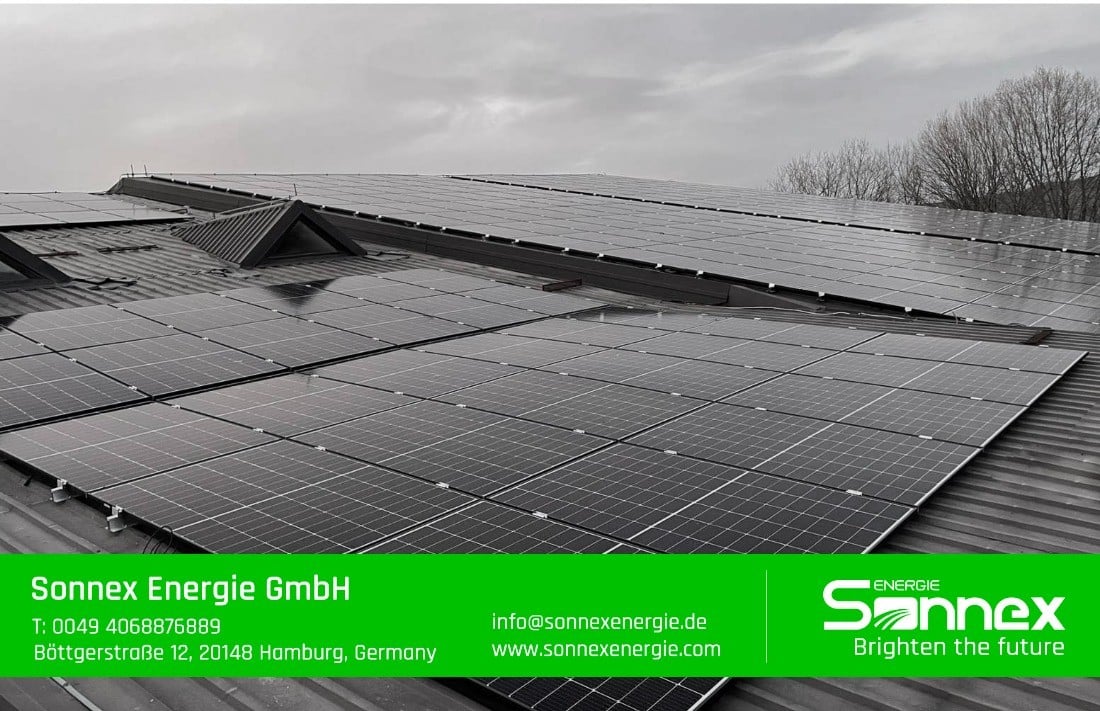

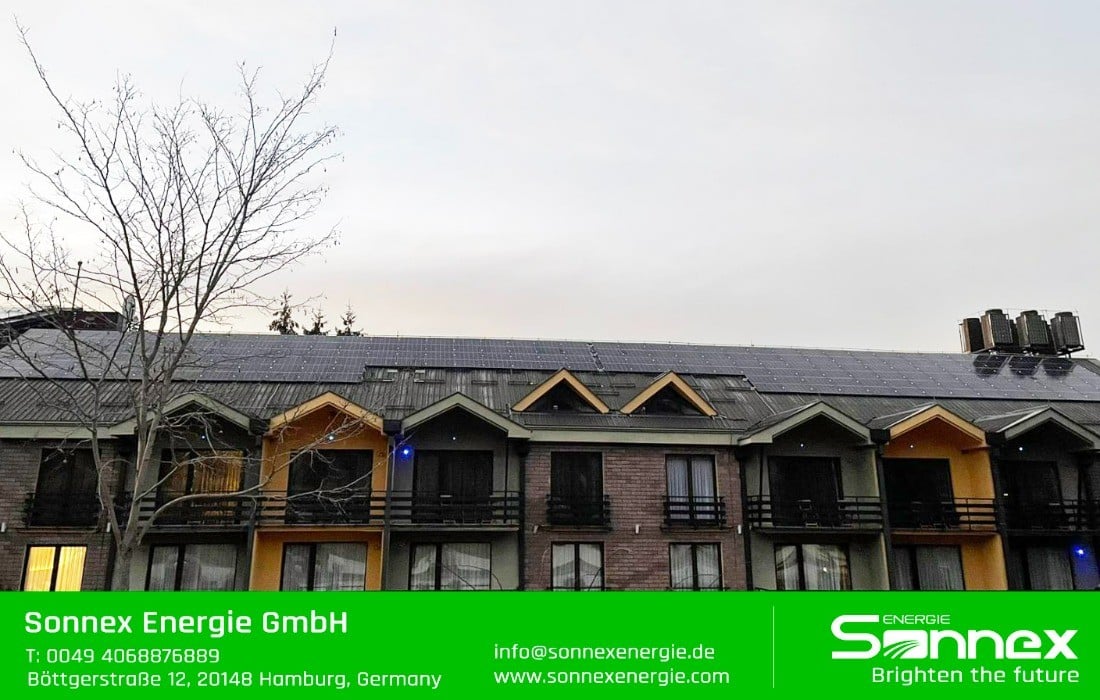

Projects
Firmenlogo

Sonnex Energie GmbH

Click to show company phone
https://www.sonnexenergie.com
Deutschland Deutschland
Gebäude 571, Cargo City Süd, 60549 Frankfurt am Main
location
Hersteller Kontaktieren
Hinweis: Ihre Anfrage wird direkt an Sonnex Energie GmbH gesendet.

Nützliche Kontakte

Unternehmen Beschreibung

Sonnex Energie is a Germany-based solar technology company dedicated to providing high-performance and intelligent PV solutions for global markets. Our product portfolio includes advanced N-type solar modules, smart solar modules, grid-connected and hybrid inverters, and battery energy storage systems.

Our solar modules are designed using cutting-edge cell technologies, including N-type TOPCon, TBC (Tunnel Back Contact), bifacial glass/glass designs, and smart module architectures, ensuring high energy yield and stable performance across diverse installation conditions.

By integrating intelligent functions such as module-level optimization, advanced inverter control, and smart monitoring, Sonnex solutions help reduce mismatch losses, improve system safety, and maximize lifetime energy output.

German Quality, Global Vision

Sonnex Energie follows German quality standards throughout product development and manufacturing. Our systems are designed to perform reliably under demanding environmental conditions while maintaining elegant design and user-friendly operation.With partners and projects across Europe and international markets, Sonnex Energie continues to expand its footprint as a trusted provider of smart and efficient solar energy solutions.

Sonnex Energie – Powering a Smarter Energy Future

At Sonnex Energie, we believe solar power should be efficient, intelligent, and dependable. Our mission is to empower installers, EPCs, and system owners with innovative PV technology that delivers long-term value and sustainable impact.

Weitere Büros
Land：
Belgien
Adresse：
Achterstege 9 9940 Evergem
