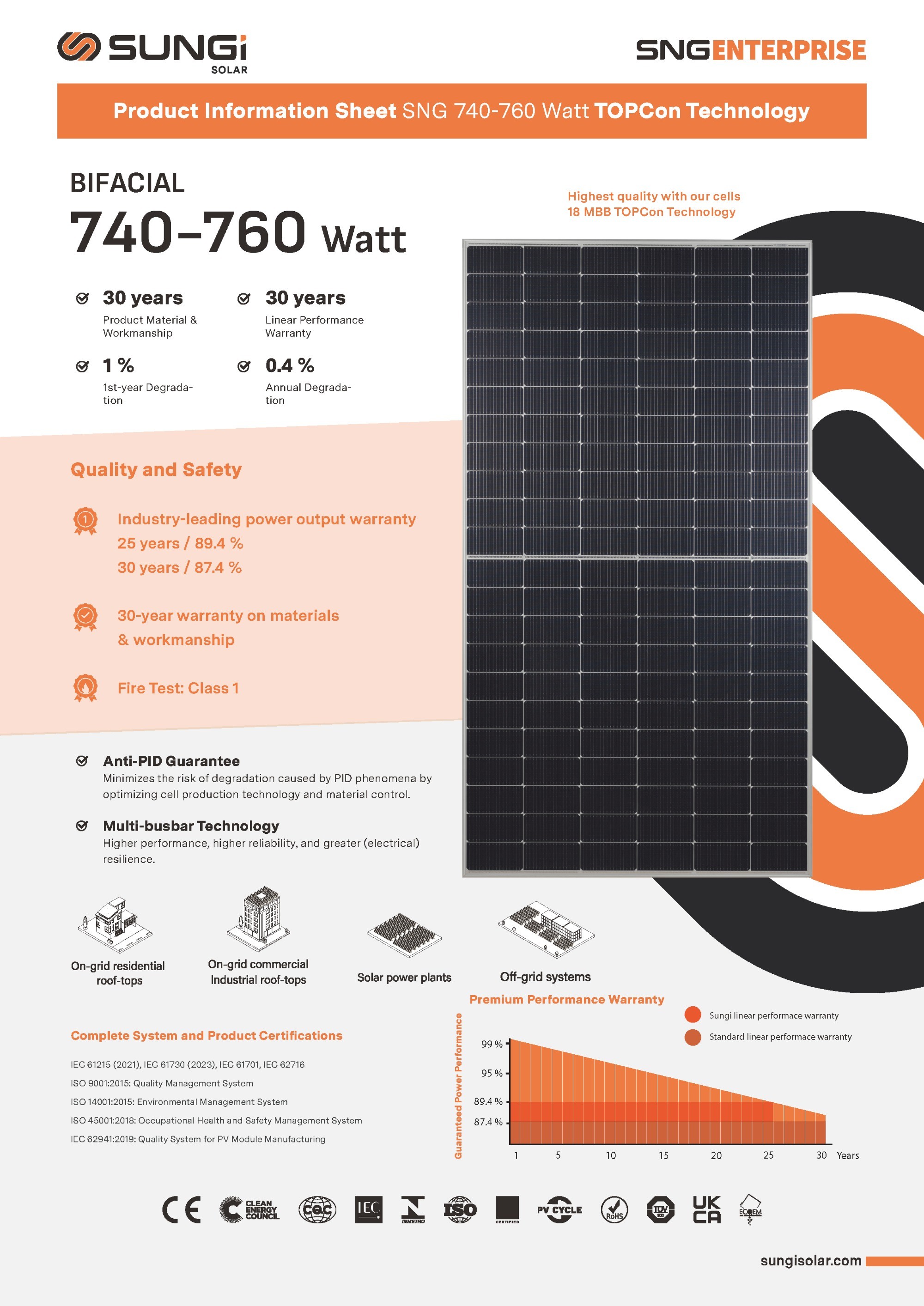

SNG Enterprise Bifacial 740-760W Silver Frame

Sungi Solar China Factory Co., Ltd.

Batterietechnologie:	Bifacial, TOPCon
Leistungsbereich:	740 ~ 760 Wp
Region:	China

Hersteller Kontaktieren

Hinweis: Ihre Anfrage wird direkt an Sungi Solar China Factory Co., Ltd. gesendet.

Beschreibung:

Passed IEC 5400 Pa mechanical loading test
Minimizes the risk of degradation caused by PID phenomena by optimizing cell production technology and material control.
Higher performance, higher reliability, and greater (electrical) resilience.

Produktinformation
Firmenprofil

Produkteigenschaft

Typ

Monokristallin

Modelnummer

SNG-740

SNG-745

SNG-750

SNG-755

SNG-760

Garantie

Produktgarantie

30 Jahre

Leistungsgarantie

25 Jahre auf 89,4% der angegebenen Nennleistung, 30 Jahre auf 87,4% der angegebenen Nennleistung

Elektrische Daten bei STC

Nennleistung (Pmax)

740 Wp

745 Wp

750 Wp

755 Wp

760 Wp

Spannung bei Maximalleistung (Vmpp)

41,6 V

41,8 V

42 V

42,2 V

42,4 V

Strom bei Maximalleistung (Impp)

17,79 A

17,82 A

17,86 A

17,89 A

17,92 A

Leerlaufspannung (Voc)

49,5 V

49,7 V

49,9 V

50,1 V

50,3 V

Kurzschlussstrom (Isc)

18,89 A

18,94 A

18,99 A

19,04 A

19,909 A

Modulwirkungsgrad

23,82 %

23,98 %

24,14 %

24,3 %

24,46 %

Leistungstoleranz (+)

+ 5 %

Leistungstoleranz (-)

- 5 %

Standard Testbedingungen (STC): Luftmasse AM 1,5 - Einstrahlung 1000 W/m² - Zellentemperatur 25°C,

Elektrische Daten bei NOTC

Spannung bei Maximalleistung (Vmpp)

39,5 V

39,7 V

39,9 V

40,1 V

40,3 V

Strom bei Maximalleistung (Impp)

14,24 A

14,27 A

14,3 A

14,33 A

14,36 A

Leerlaufspannung (Voc)

47 V

47,2 V

47,4 V

47,6 V

47,8 V

Kurzschlussstrom (Isc)

15,18 A

15,21 A

15,24 A

15,27 A

15,3 A

Temperatur

45±2 °C

Norminal operating cell temperature (NOCT): Einstrahlung 800 W/m², AM 1,5 – Umgebungstemperatur 20°C – Windgeschwindigkeit 1 m/s

Thermische Daten

Temperaturbereich

-40~85 °C

Temperaturkoeffizient Pmax

-0,29 %/°C

Temperaturkoeffizient Voc

-0,25 %/°C

Temperaturkoeffizient Isc

0,045 %/°C

Parameter der Systemintegration

Maximale Systemspannung

1500 V

Rückwärtsbestromung

30 A

Technische Daten

Modulabmessungen (H/B/T)

2384x1303x35 mm

Gewicht

38,7 kg

Zellengröße

210×105 mm

Zellenzahl

132

Glastyp

Entspiegelt, Temperiert

Glasstärke

2 mm

Frame-Typ

Eloxiertes Aluminium

Bypass-Dioden

IP Schutzgrad

IP 68

Steckertyp

MC4

Kabelquerschnitt

4 mm²

Kabellänge

1400 mm

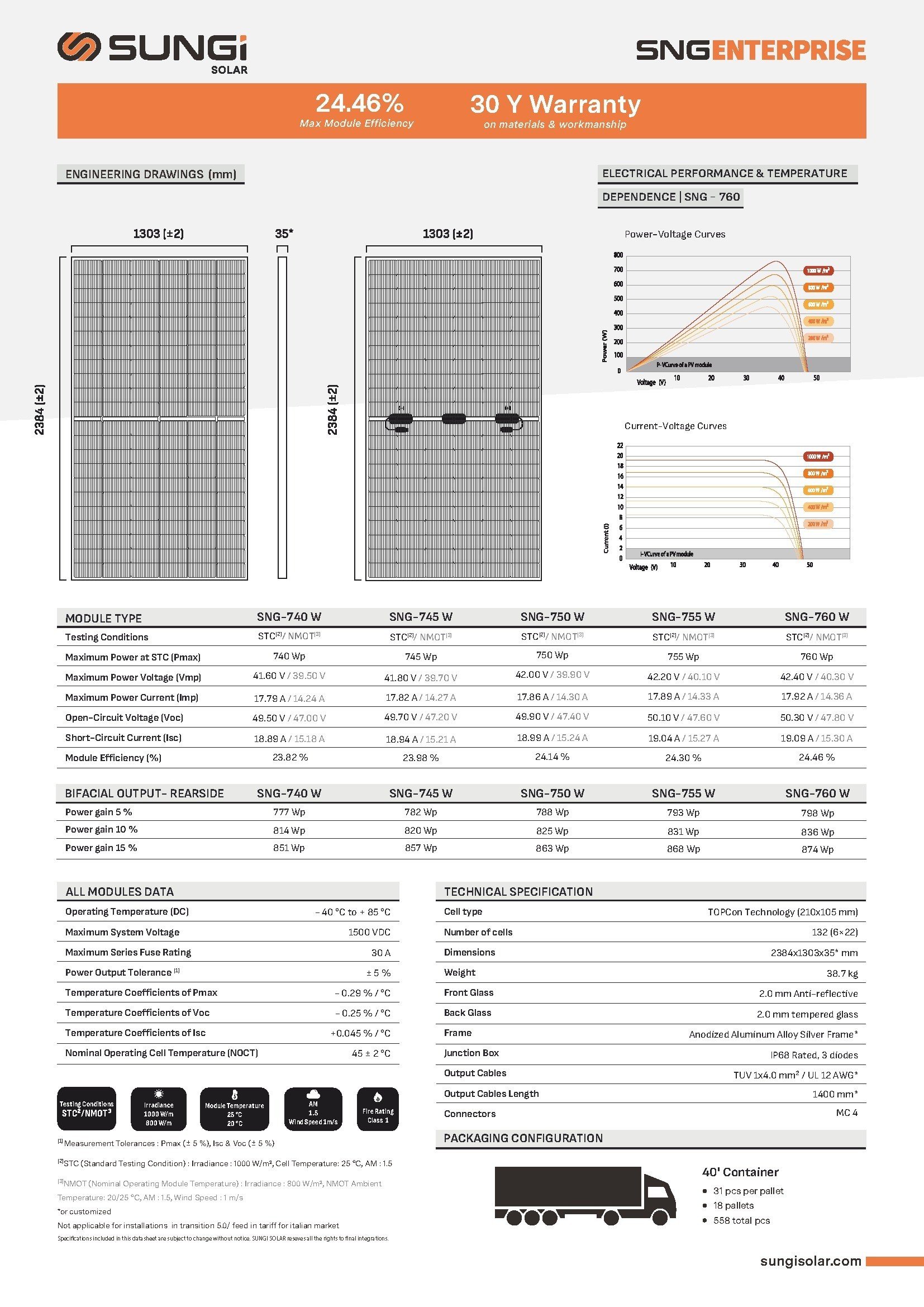

PDF

PDF Datei des Unternehmens Herunterladen

New Generationof photovoltaics

Sungi Solar’s technologies represent the forefront of solar innovation, driving the industry toward higher efficiencies and greater reliability. With advanced designs and cutting-edge materials, we deliver solutions that redefine what’s possible in renewable energy.

Our commitment to excellence ensures that every panel is built to perform, last, and adapt to the challenges of a rapidly evolving world. Choose Sungi Solar to harness the power of innovation and lead the transition to a sustainable future.

Quality and Innovative Production

We are a pioneering company specializing in integrated photovoltaic products.

Since 2006, we have established ourselves as a leading solar cell manufacturer, continuously improving efficiency and performance through cutting-edge technologies.

Our production network spans across the United States, Japan, Europe, and Southeast Asia, supported by ongoing investments in advanced equipment and modern management systems. A professional production team, a dedicated R&D unit, and a highly skilled sales force collaborate to uphold Sungi Solar’s strict quality standards. From real-time monitoring to rigorous product testing, every process is meticulously controlled to guarantee the highest level of excellence and efficiency.

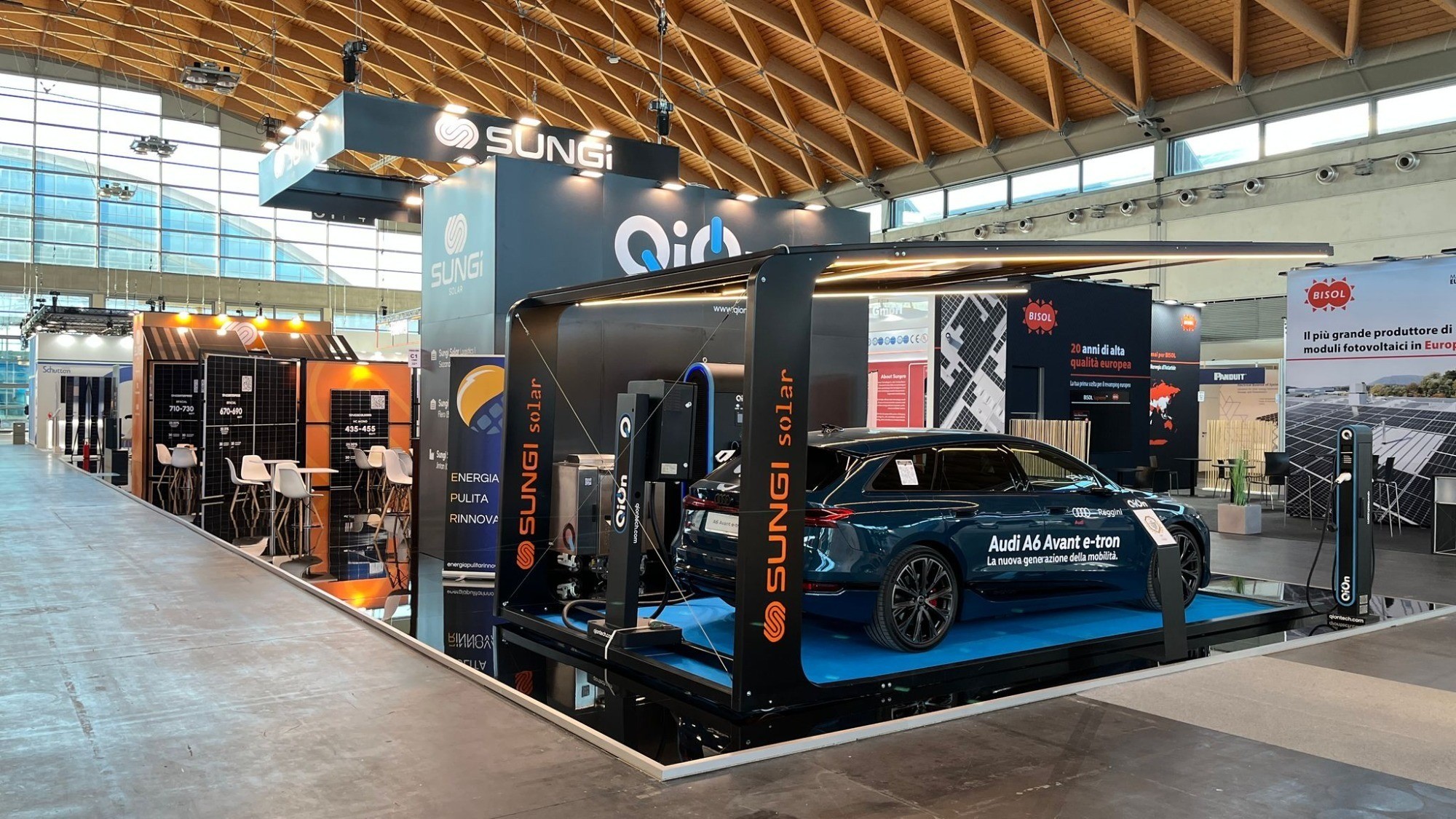

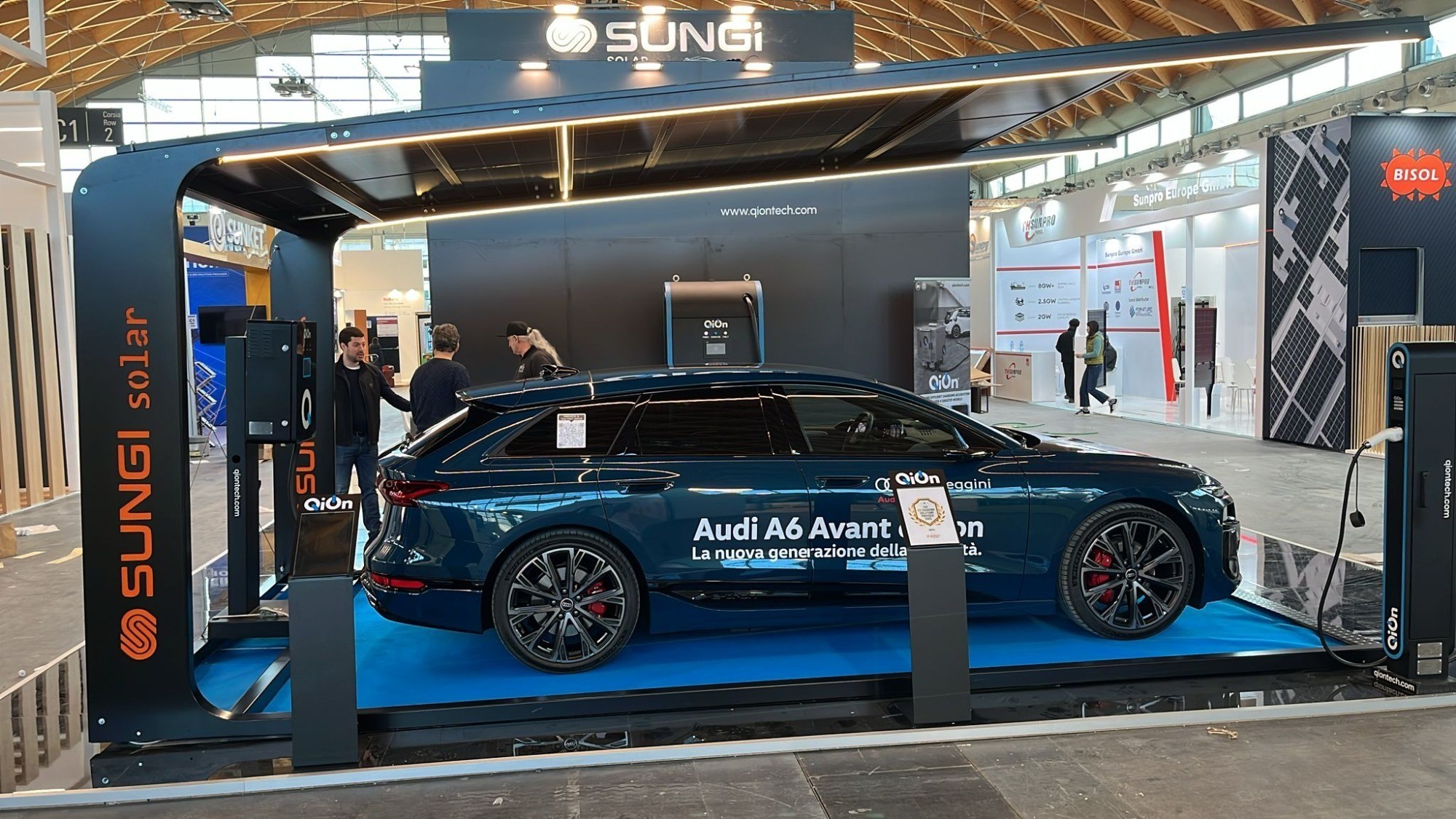

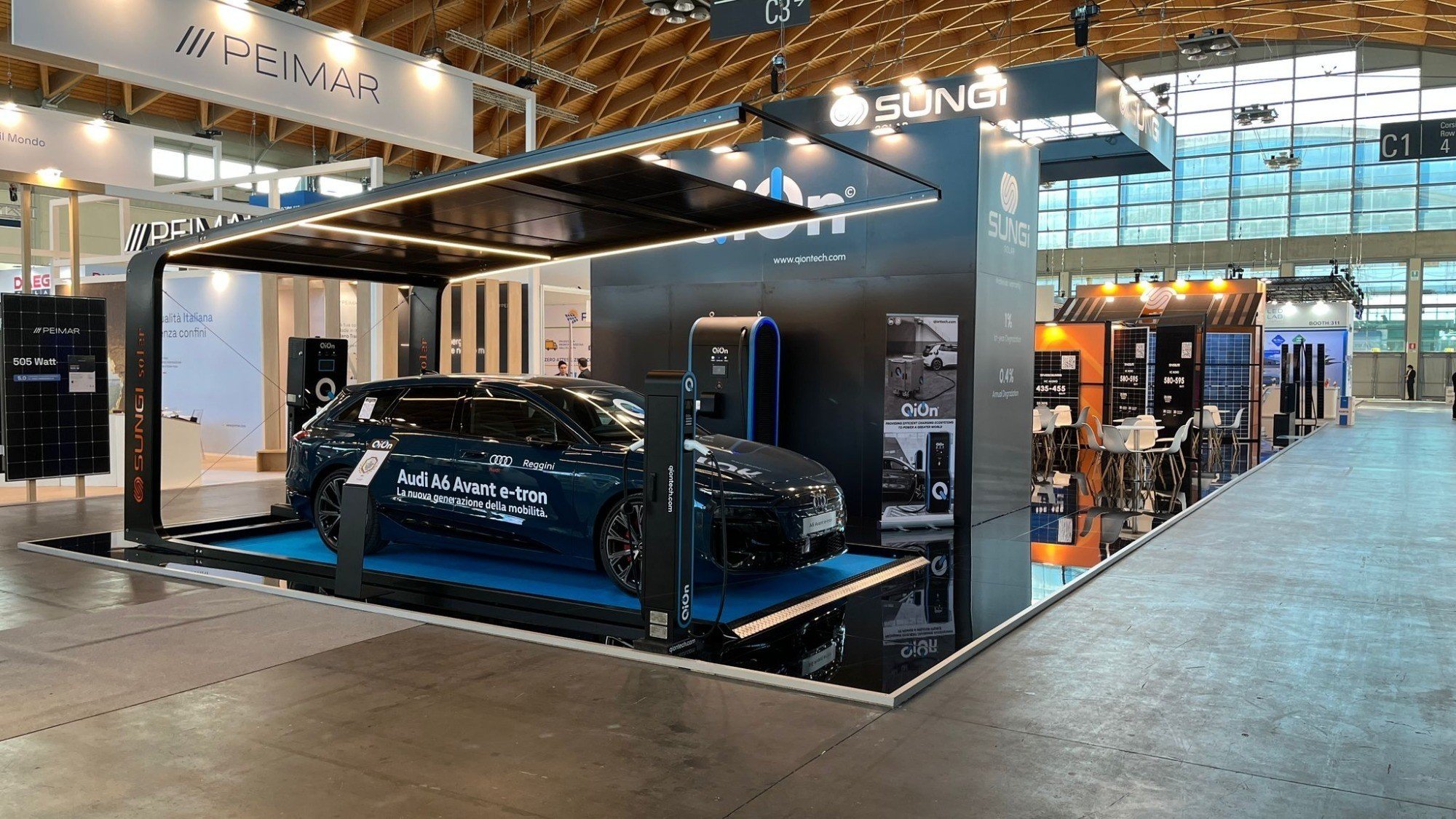

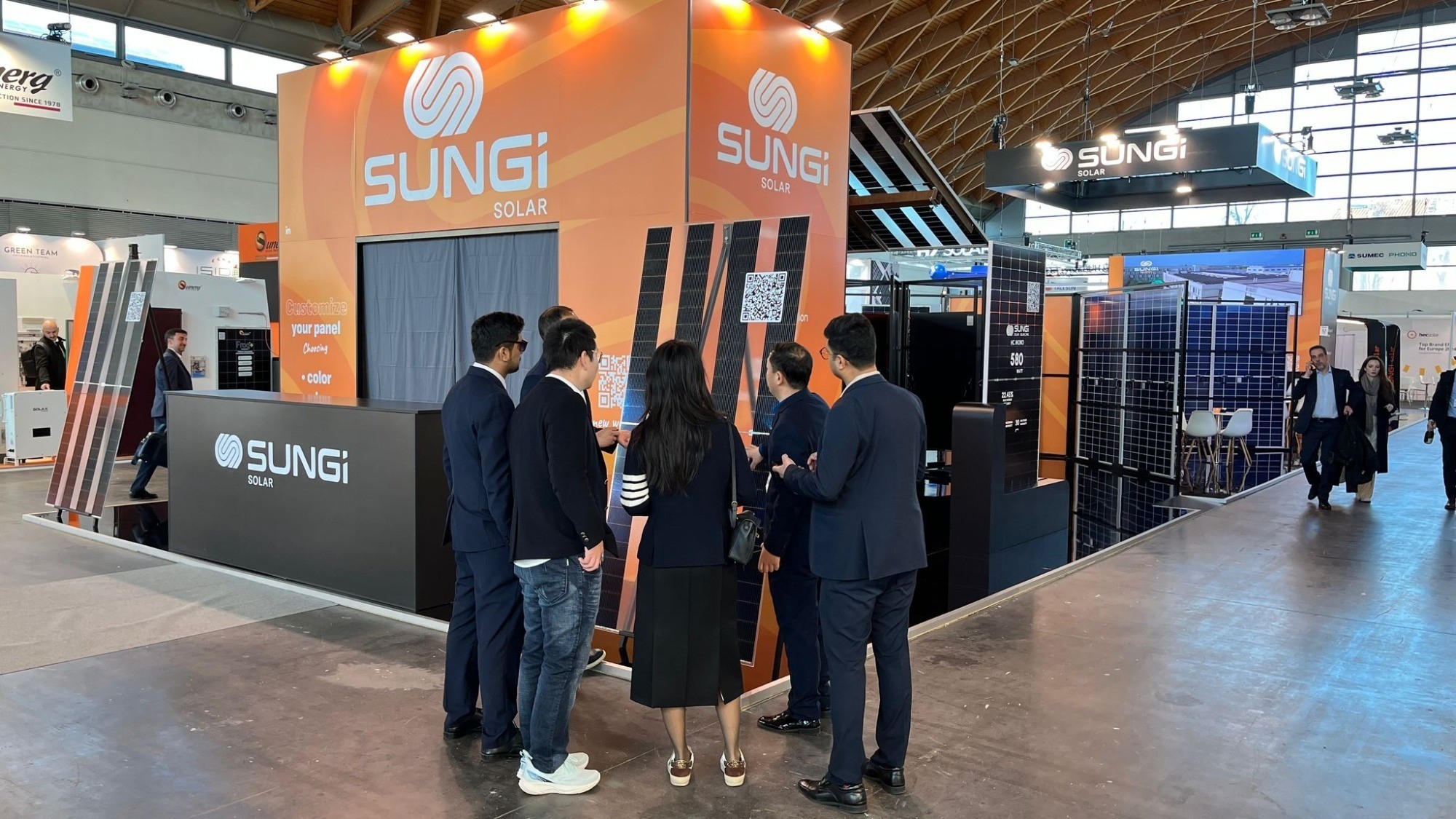

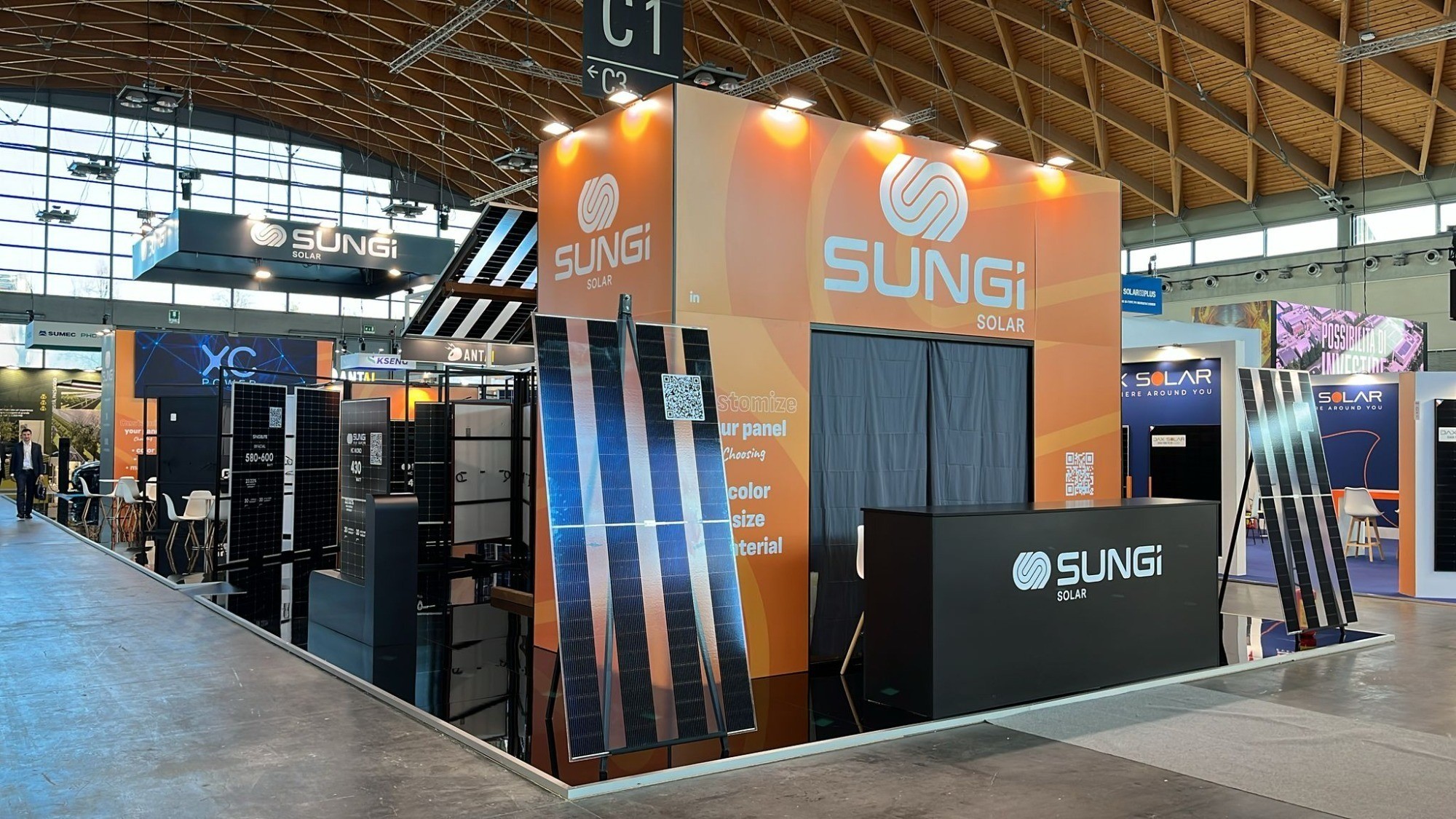

Expo
