RM-550W-182M144B

Zhejiang Ronma Solar Group Co,.Ltd.
Preis:
Ab €0,228 / Wp
Typ: Bifacial, PERC
Leistungsbereich: 530 ~ 550 Wp
Region: China China
Hinweis: Ihre Anfrage wird direkt an Zhejiang Ronma Solar Group Co,.Ltd. gesendet.

Beschreibung:

  • Great power yield of up to 550 watts

  • Excellent efficiency of up to 21.29%

  • PERC design

  • Bifacial technology

  • Half-cut cell design

  • Durable construction and rigorous testing

Produkteigenschaft

Modelnummer
RM-530W-182M/144 RM-535W-182M/144 RM-540W-182M/144 RM-545W-182M/144 RM-550W-182M/144
Garantie
Produktgarantie 10 Jahre
Leistungsgarantie 25 Jahre auf 87,2% der angegebenen Nennleistung
Elektrische Daten bei STC
Nennleistung (Pmax)
530 Wp 535 Wp 540 Wp 545 Wp 550 Wp
Spannung bei Maximalleistung (Vmpp)
41,41 V 41,55 V 41,72 V 41,9 V 42,1 V
Strom bei Maximalleistung (Impp)
12,81 A 12,88 A 12,95 A 13,02 A 13,07 A
Leerlaufspannung (Voc)
49,32 V 49,52 V 49,69 V 49,9 V 50,1 V
Kurzschlussstrom (Isc)
13,7 A 13,78 A 13,86 A 13,9 A 13,95 A
Modulwirkungsgrad
20,52 % 20,71 % 20,91 % 21,11 % 21,29 %
  Standard Testbedingungen (STC): Luftmasse AM 1,5 - Einstrahlung 1000 W/m2 - Zellentemperatur 25°C,
Elektrische Daten bei NOTC
Temperatur 44±2 °C
  Norminal operating cell temperature (NOCT): Einstrahlung 800 W/m2, AM 1,5 – Umgebungstemperatur 20°C – Windgeschwindigkeit 1 m/s
Thermische Daten
Temperaturbereich -40~85 °C
Temperaturkoeffizient Pmax -0,36 %/°C
Temperaturkoeffizient Voc -0,27 %/°C
Temperaturkoeffizient Isc 0,04 %/°C
Parameter der Systemintegration
Maximale Systemspannung 1500 V
Rückwärtsbestromung 25 A
Technische Daten
Modulabmessungen (H/B/T) 2279x1134x35 mm
Gewicht 34 kg
Zellentyp Bifacial, PERC
Zellenzahl 108
Glastyp Entspiegelt, Temperiert
Glasstärke 2 mm
Frame-Typ Eloxiertem Aluminiumlegierung
Bypass-Dioden 3
IP Schutzgrad IP 68
Steckertyp MC4
Kabelquerschnitt 4 mm2
Kabellänge 300 mm
PDF
PDF Datei des Unternehmens Herunterladen
Projects

About US

RonmaSolar, one of the earliest manufacturers of solar panels in China, is mainly engaged in crystalline silicon solar cells, modules, pv system engineering, pv application products R&D, manufacturing, sales, technical support, EPC and after-sales service, etc.

We can offer Mono/Poly-crystalline Silicon PERC and N-Type TOPCON Solar Cells with efficiency up to 24%+. Also, we can customize 380-660W photovoltaic modules, including full/half-cutting cell modules, single/dual-glass modules, full black modules and other kinds of photovoltaic modules. Besides, we can provide customized solutions for global customers.

Our advantage as follows:

1.We have warehouses in Rotterdam, Dubai and other countries with enough stock for panels.

2.Ronma Solar's existing cell and module production capacity is 3GW each, and it is expected that in 2023, the cell production capacity will reach 14GW and the module production capacity will be 5GW+.

3.We have nearly 10 years of experience of PV, with the most advanced technology and the highest level of craftsmanship.

4.We have sales offices in India, Europe and other places.

5.We have the most experienced engineering team, the strictest quality control team, and the professional sales team, which can provide the highest cost-effective, high efficiency solar modules, and the most perfect service.

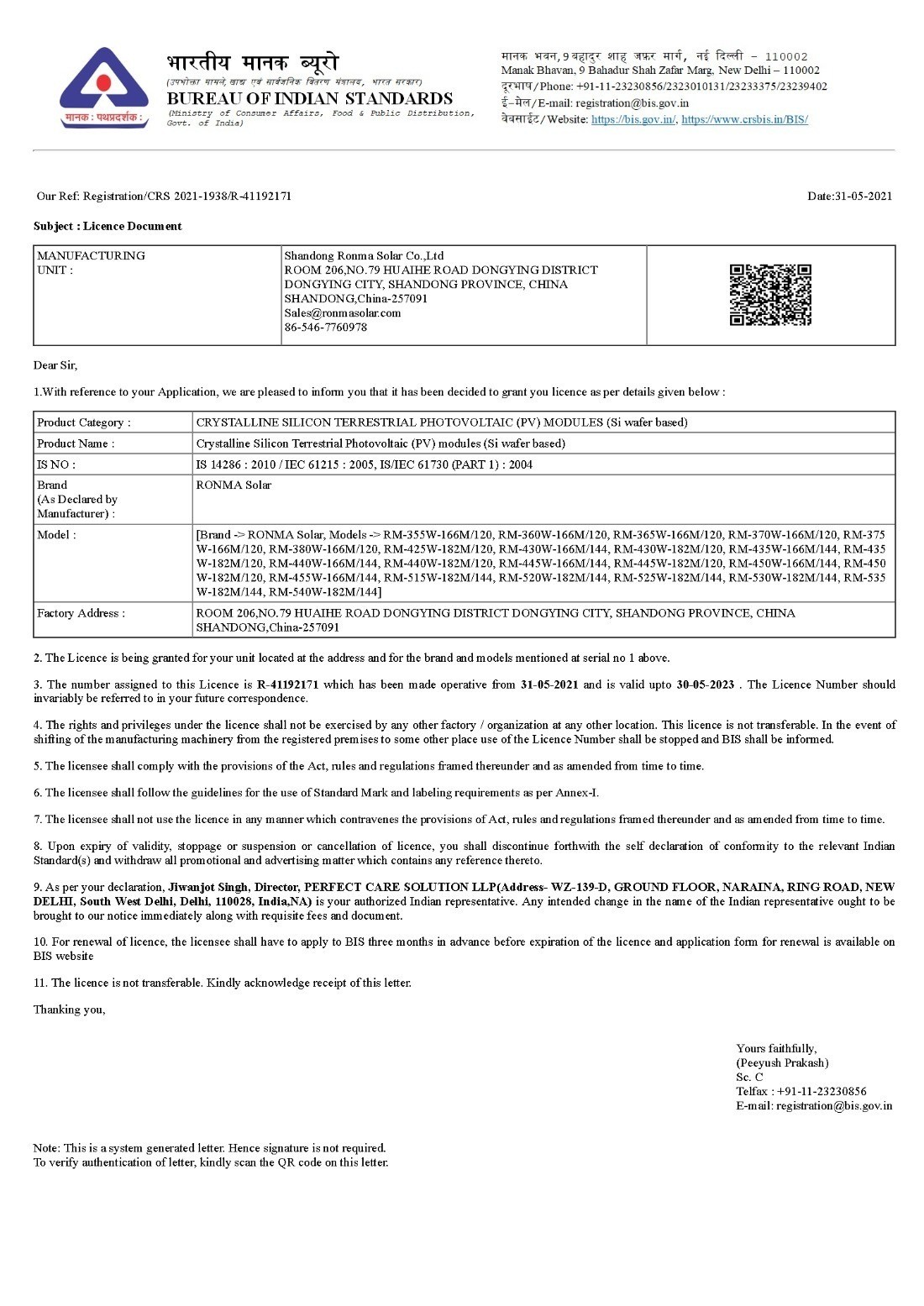

6.RonmaSolar PV products have highly recognized by clients from China, India, The European, South America, Middle East and Africa, Southeast Asia etc.Our products have obtained CEC, TUV, BIS, CCC, CQC, CE, IEC and INMETRO certifications.
